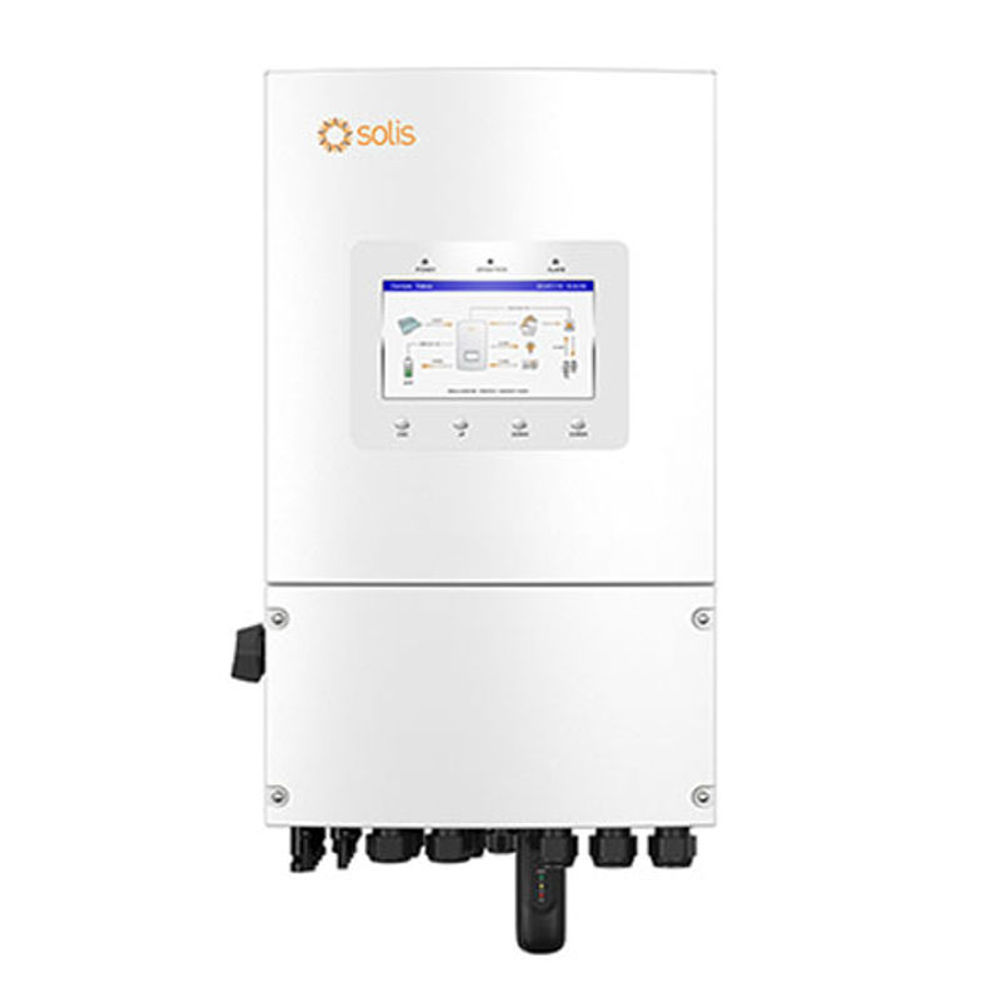

Solis 12kW Hybrid Inverter

This 12kW single phase hybrid inverter — the Solis S6-EH1P12K — is built for large residential energy storage systems that have outgrown a standard 5kW or 8kW setup. With three integrated MPPT trackers, each handling up to 20A of input current, it supports a recommended solar array of up to 16.8kWp, giving serious headroom for bigger roofs and higher generation targets. It switches to backup power in under 10 milliseconds, with 200% overload capability for 10 seconds to handle heavy motor startups like water pumps and air conditioners without tripping.

It works with any compatible battery between 40V and 60V, handling up to 350A of charge/discharge current, and supports PV-only off-grid operation — meaning it can run without a battery if you want a lower upfront cost solar setup. Multiple generator connection methods with automatic control extend backup during longer outages, and up to 6 units can be paralleled for a combined system of up to 160kW, so this inverter scales into genuinely large installations. The IP66 rating and 7-inch industrial touchscreen make it built for demanding conditions with straightforward local control, and SolisCloud gives you remote monitoring and troubleshooting. Every unit Greenvion sells is warranty-backed, and our EPRA-licensed team can install and configure it as part of a complete solar system — book a free site assessment to confirm 12kW is the right capacity for your property, or request a quote for current pricing.

Key Specs:

• Rated output power: 12,000W / 12kVA, single phase
• Recommended max PV array: 16.8kWp
• MPPT trackers: 3, up to 20A per MPPT (up to 40A with dual strings)
• Battery voltage range: 40–60V (any compatible battery)
• Max charge/discharge current: 350A
• Backup switchover time: Under 10ms
• Overload capability: 200% for 10 seconds (off-grid mode)
• Protection rating: IP66
• Parallel capability: Up to 6 units, combined system up to 160kW
• Interface: 7-inch industrial touchscreen | Monitoring: SolisCloud
• Dimensions: 464 × 763 × 282 mm | Weight: 48.5kg
• Grid voltage: 220/230V, 50Hz

For large Kenyan homes that have outgrown a standard system, the Solis S6-EH1P12K delivers the capacity and scalability to match — installed and warranty-backed by Greenvion.

Box Contents

• Solis S6-EH1P12K hybrid inverter
• Mounting bracket
• Terminal connectors (DC and AC)
• User manual and quick installation guide
